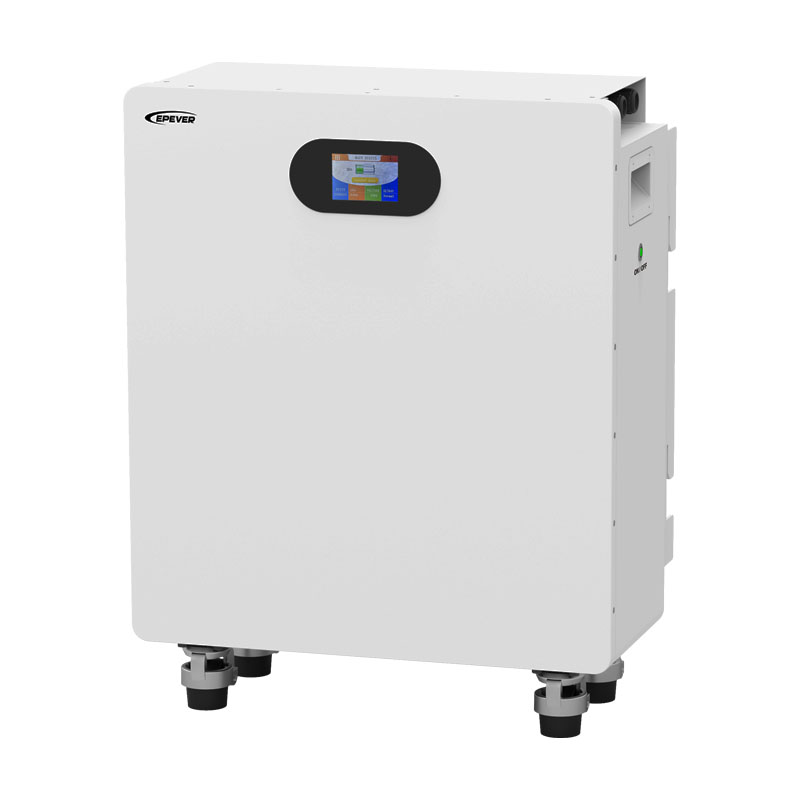

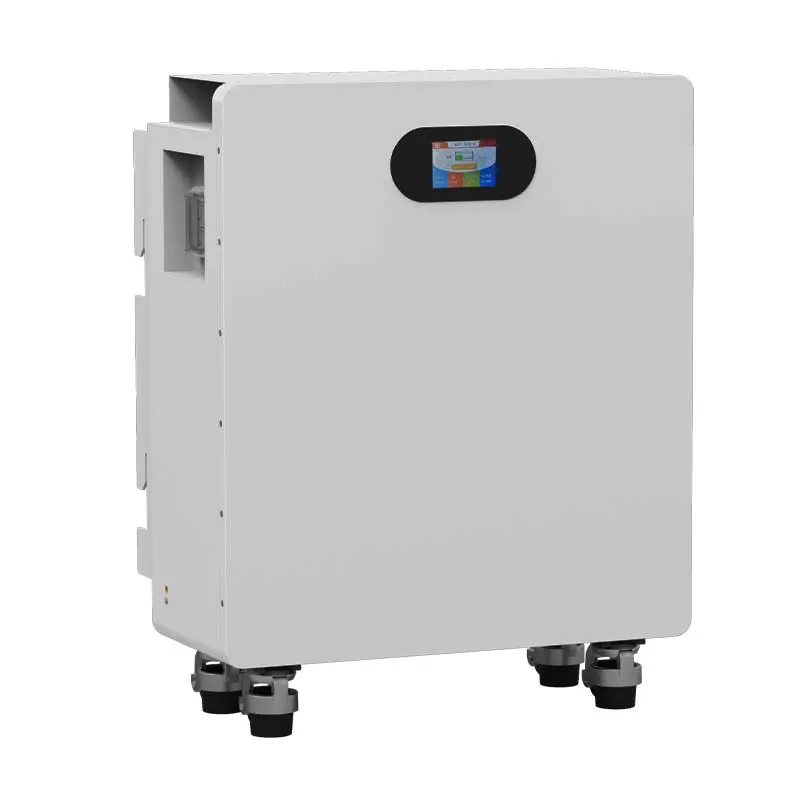

High-Capacity LiFePO4 Battery for Residential & Commercial Energy Storage Applications
The 51.2V 10kWh Floor Mounted Lithium Battery is a robust, high-capacity energy storage solution designed for residential and commercial applications. Featuring premium A-grade LiFePO4 prismatic cells and a durable metal casing, this battery delivers exceptional performance, safety, and reliability for demanding energy storage needs.
With its floor-mounted design, this battery provides excellent heat dissipation and structural stability. The integrated LCD display allows real-time monitoring of cell SOC, voltage, temperature, and alarm status. Supporting up to 8 units in parallel, users can scale their energy storage capacity from 10kWh to 80kWh to meet growing energy demands. The comprehensive protection system and IP65 rating ensure safe operation in various environments.
Utilizes brand new prismatic LiFePO4 cells with built-in cell balancing function for optimal performance and longevity.
Durable metal casing provides excellent heat dissipation, enhanced safety, and structural stability for floor-mounted installation.
Integrated LCD display for real-time monitoring of cell SOC, voltage, temperature, and alarm status for easy system management.
Exceeds 6000 cycles at 80% depth of discharge (25°C, 0.5C), ensuring long-term reliability and return on investment.
The floor-mounted battery system provides reliable energy storage for residential and commercial applications, with modular expansion capability and comprehensive monitoring features.
Designed for stable floor installation with durable metal casing that provides excellent heat dissipation and structural integrity.
10kWh capacity with 205Ah rating provides substantial energy storage for residential and commercial applications.
LCD display provides real-time monitoring of cell SOC, voltage, temperature, and alarm status for comprehensive system management.
Supports up to 8 units in parallel, allowing capacity expansion from 10kWh to 80kWh as energy requirements grow.
Store excess solar energy for household use during peak hours or power outages, reducing electricity bills and increasing energy independence.
Provide reliable backup power for small to medium businesses, retail stores, offices, and workshops during grid outages.
Power remote homes, cabins, telecommunications sites, and agricultural facilities where grid connection is unavailable or unreliable.
Support industrial equipment, manufacturing processes, and critical infrastructure with reliable energy storage solutions.
Provide buffer storage for electric vehicle charging stations, reducing peak demand on the grid and optimizing charging costs.
Integrate into microgrid systems for communities, campuses, and industrial parks to enhance energy resilience and optimize renewable energy usage.
Complete technical parameters for the 51.2V 10kWh Floor Mounted Lithium Battery.
| Specifications | |
|---|---|
| Model Information | |
| Model | EG51205A |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Pack Configuration | 16S1P |
| Electrical Characteristics | |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 205 Ah |
| Energy Capacity | 10496 Wh (10.5 kWh) |
| Continuous Discharge Current | 100 A |
| Max. Charge Current | 100 A |
| Max. Discharge Current | 200 A |
| Recommended Discharge Current | 100 A |
| Charge Cut-off Voltage | 57.6 V |
| Discharge Cut-off Voltage | 41.6 V |
| Recommended Discharge Depth | 80% |
| Physical Characteristics | |
| Dimensions (L×W×H) | 550 × 235 × 620 mm |
| Weight | 93.9 ± 0.5 kg |
| Mounting Type | Floor-mounted |
| Terminal Type | Quick-plug |
| IP Rating | IP65 |
| Environmental Characteristics | |
| Charge Temperature | 0°C ~ +55°C |
| Discharge Temperature | -20°C ~ +60°C |
| Optimal Storage Temperature | 5°C ~ +35°C |
| Relative Humidity | 40% ~ 80% |
| Performance & Life | |
| Cycle Life | >6000 cycles (25°C, 0.5C, 80% DOD) |
| Parallel Configuration | Max. 8 units in parallel |
| Communication & Display | |
| Communication Interface | RS485, RS232, CAN |
| Display | LCD Screen |
| Display Functions | Cell SOC, Voltage, Temperature, Alarm Status |
| Certifications | |
| Certifications | UN38.3, MSDS, IEC62619 |
| Protection Features | |
| Protection Functions | Over-charge, Over-discharge, Over-temperature, Low-temperature, Over-current, Short-circuit protection |
We are dedicated to delivering fully customized energy storage products and tailored solutions. Backed by our unwavering commitment to innovation, quality, and customer satisfaction, we don't just supply batteries—we design the right energy storage solution specifically for you. From initial consultation to ongoing maintenance, we provide end-to-end support throughout the entire lifecycle.
Quality & Reliability: Our 51.2V 10kWh Floor Mounted Lithium Battery is built with premium A-grade LiFePO4 cells and features a durable metal casing for excellent heat dissipation and safety. With over 6000 cycles at 80% depth of discharge and support for up to 8 units in parallel, our floor-mounted design provides the capacity and scalability needed for demanding applications. The integrated LCD display offers real-time monitoring of critical parameters, while comprehensive protection systems ensure safe operation. We provide complete support from system design to installation, ensuring your energy storage solution operates efficiently and reliably for years to come.
For detailed quotations, system customization, or technical datasheets for our 51.2V 10kWh Floor Mounted Lithium Battery, please contact our sales team.
