125kW/241kWh Energy Storage All-in-One System

[ Time：2026-02-10 ]

Details

125kW/241kWh Energy Storage All-in-One System - Empower Your Future

Introduction

Welcome to the future of energy management with our state-of-the-art 125kW/241kWh Energy Storage All-in-One System. Designed for efficiency, reliability, and ease of use, this system is your gateway to sustainable energy solutions tailored for both residential and commercial applications.

Product Highlights

Ultimate Integration

Complete Solution in One: Combines battery packs, Battery Management System (BMS), Power Conversion System (PCS), Energy Management System (EMS), along with auxiliary systems into a single, compact unit.
Plug & Play Installation: Pre-configured and tested before shipping, ensuring minimal setup time and quick deployment.

Versatile Applications

Home Energy Independence: Optimize energy costs and ensure uninterrupted power supply.
Commercial Efficiency: Ideal for businesses looking to reduce operational costs and enhance sustainability.
Grid Support: Contributes to grid stability by managing peak loads effectively.

Safety Meets Intelligence

Advanced Safety Features: Equipped with overcharge protection, over-discharge protection, short-circuit protection, and more.
Smart Monitoring & Maintenance: Real-time system monitoring via cloud platform; predictive maintenance alerts help minimize downtime.

Technical Specifications

DC Side
Cell Type	LFP/ 314 Ah
Pack Configuration	241kWh/1P24S
System Configuration	241kWh /1P240S
Rated DC Voltage	768V
DC Voltage Range	672-864 V
Max.Charge/Discharge Rate	0.5P
Max.Depth of Discharge	100%(25±2℃)
AC Side
Rated Output Power	125kW
Rated AC Voltage	400V
AC Voltage Range	±15%
Grid Type	3W+N+PE
Rated Frequency	50Hz/60Hz
Power Factor	0.99/-1-+1
THDi	≤3%
DC Ratio	<0.5%Ipn
General
Max.Round Trip Efficiency	87%
Cycle Life	≥8.000 cycles
Communication	Modbus TCP/IP
Fire Suppression System	Aerosol
Ingress Rating	IP55
Cooling	Air cooling
Operating Temperature	-25℃-55℃(Derating after 45C)
Anticorrosion Rating	C4 (C5 optional)
Humidity	0-95% RH (non-condensing)
Noise	75 dB
Altitude	3000m (Derating above 2000m)
Dimensions(WDH)	1,2501.4502.250mm
Weight	2,670kg
Safety/EMC	UN38.3,IEC62619,IEC63056,IEC62477-1,IEC61000-6-2/4
Grid code	EN50549-1/-10,EN50549-2/-10,G99,VDE4105,NRS097,C10/11

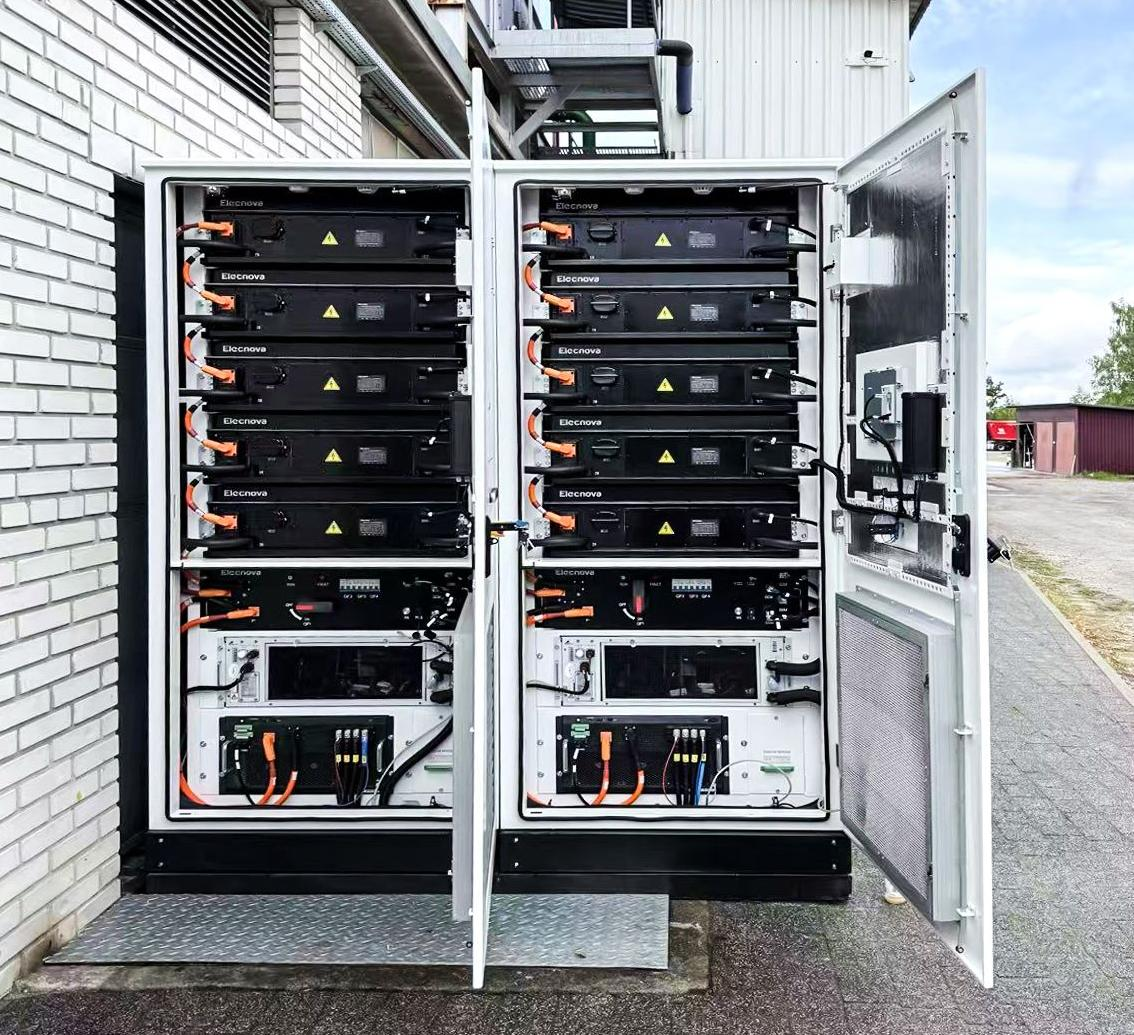

125kW/241kWh Energy Storage All-in-One System(图1)

Success Stories

Project Name: Sustainable Retrofit for Italy
Overview: By implementing our 125kW/241kWh Energy Storage All-in-One System, [Company Name] achieved a 30% reduction in electricity costs while significantly enhancing their environmental impact.
