High-Capacity Industrial & Commercial ESS Solution for Peak Shaving, Renewable Integration, and Backup Power

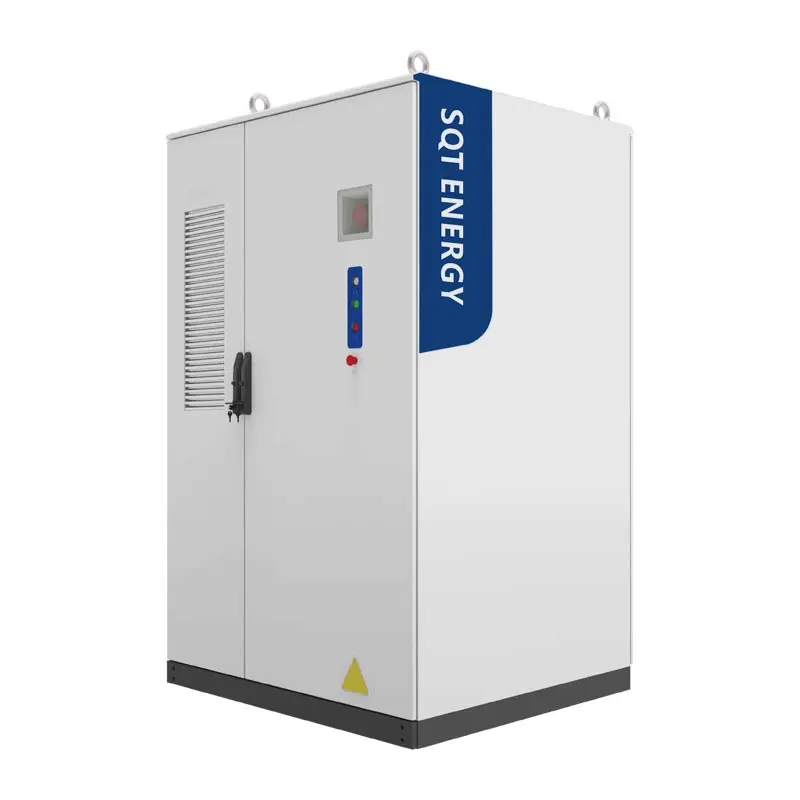

The 418kWh All-in-One Liquid-Cooled Energy Storage System is a high-capacity, fully integrated solution designed for large-scale commercial and industrial applications. It combines advanced LFP battery technology with efficient liquid cooling and forced air cooling systems in a robust, pre-assembled enclosure.
With 418kWh energy capacity and multiple power output configurations (100kW/210kW), this system is engineered for demanding applications including peak shaving, demand charge management, renewable energy time-shifting, and critical backup power. Its high voltage design (1331.2V DC) and advanced thermal management ensure optimal performance and longevity.
418kWh energy capacity with 1P416S configuration, utilizing 314Ah LFP cells for superior energy density and long cycle life.
Liquid cooling + forced air cooling system maintains optimal battery temperature, ensuring consistent performance and extending system lifespan.
Available in 100kW, 210kW, and 210kW configurations with 400V, 690V, and 800V AC voltage options for flexible deployment.
89% maximum round-trip efficiency with advanced power conversion technology for optimal energy savings.
The system intelligently manages energy flow between the grid, renewable sources, battery storage, and the load to optimize costs, reliability, and efficiency.
AC grid power or DC from solar/wind sources is converted and used to charge the 418kWh LFP battery bank during off-peak or high-generation periods.
Energy is stored in high-safety LFP cells. The liquid cooling + forced air cooling system ensures uniform temperature distribution for optimal health and longevity.
The system's controller continuously analyzes energy prices, load demand, and battery status to make optimal economic dispatch decisions.
During peak hours or grid outages, stored energy is converted and supplied at up to 210kW to critical loads, reducing costs and ensuring continuity.
Significantly reduce electricity demand charges by discharging stored energy during expensive peak tariff periods for factories, shopping malls, and office buildings.
Store excess solar or wind energy during the day for use at night, increasing self-consumption and ROI for renewable installations.
Provide seamless backup power for essential operations in data centers, manufacturing plants, telecom sites, and commercial facilities during grid outages.
Form the energy storage core of islanded or grid-connected microgrids, providing stability, black-start capability, and ancillary grid services.
Buffer high-power demand from electric vehicle charging stations, preventing grid overload and reducing infrastructure upgrade costs.
Provide fast-responding frequency regulation and voltage support services to the utility grid, creating new revenue streams.
Complete technical parameters for the 418kWh All-in-One Liquid-Cooled Energy Storage System.
| Specifications | |
|---|---|
| DC Side | |
| Cell Type | LFP / 314 Ah |
| Pack Configuration | 52.248 kWh / 1P52S |
| System Configuration | 418 kWh / 1P416S |
| Rated DC Voltage | 1331.2 V |
| DC Voltage Range | 1164.8 ~ 1497.6 V |
| Max. Charge/Discharge Rate | 0.25 P / 0.5 P / 0.5 P |
| Max. Depth of Discharge | 100% (25 ± 2 ℃) |
| AC Side | |
| Rated Output Power | 100 kW / 210 kW / 210 kW |
| Rated AC Voltage | 400 V / 690 V / 800 V |
| AC Voltage Range | -15% ~ +10% |
| Grid Type | 3W+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| Power Factor | 0.99 / -1 ~ +1 |
| THDi | ≤ 3% |
| DC Ratio | ＜0.5% Ipn |
| General | |
| Max. Round Trip Efficiency | 89% |
| Cycle Life | ≥ 8,000 cycles |
| Communication | Modbus TCP/IP |
| Fire Suppression System | Aerosol |
| Ingress Rating | IP55 |
| Cooling | Liquid cooling + Forced air cooling |
| Operating Temperature | -25℃ ~ 55℃ (Derating after 45℃) |
| Anticorrosion Rating | C4 (C5 optional) |
| Humidity | 0 ~ 95% RH (non-condensing) |
| Noise | ≤ 80 dB |
| Altitude | 3000m (Derating above 2000m) |
| Dimensions (W*D*H) | 1,500 * 1,350 * 2,400 mm |
| Weight | 3,800 kg |
| Safety/EMC | UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4 |
| Grid code | EN50549-1/-10, EN50549-2/-10, PN-EN-50549-1/-2 |
We are dedicated to delivering fully customized energy storage products and tailored solutions. Backed by our unwavering commitment to innovation, quality, and customer satisfaction, we don't just supply systems—we design the right 418kWh energy storage solution specifically for you. From initial consultation to ongoing maintenance, we provide end-to-end support throughout the entire lifecycle.
Reliability & Expertise: Our robust design ensures continuous operation under various conditions. We provide comprehensive support from system design to installation, commissioning, and maintenance, ensuring your 418kWh system operates efficiently, reliably, and sustainably for years to come.
For detailed quotations, system customization, or technical datasheets for our 418kWh All-in-One Liquid-Cooled Energy Storage System, please contact our sales team.
